PVC INSULATED, PVC SHEATHED CABLES

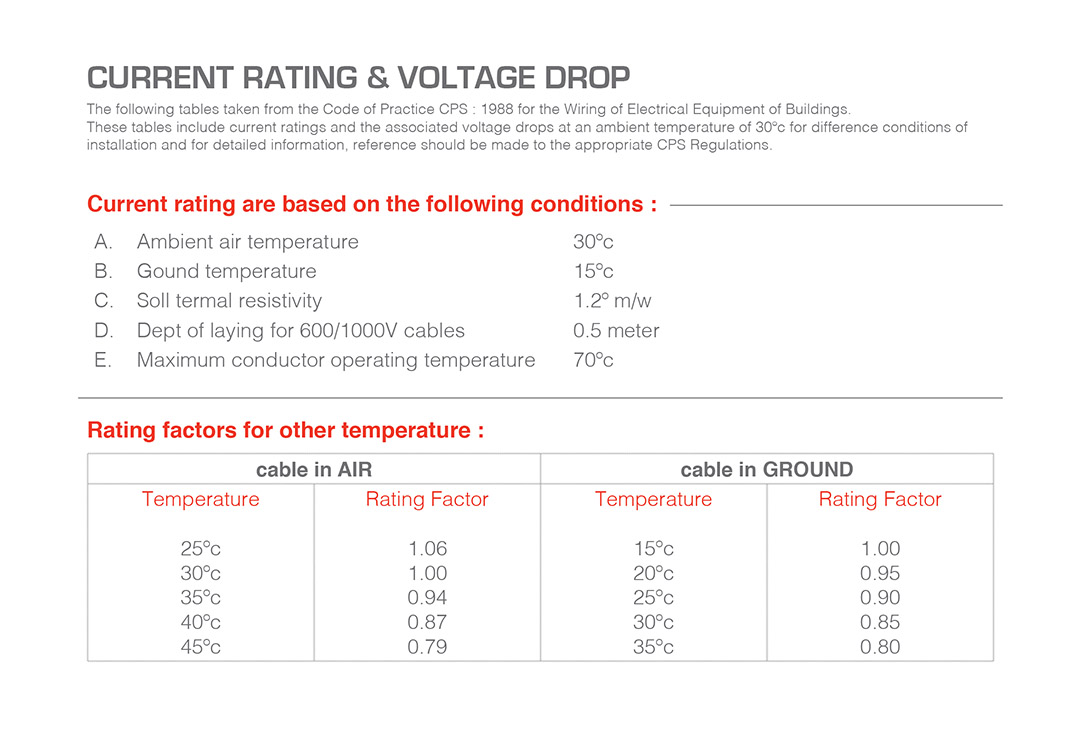

CURRENT RATING & VOLTAGE DROP

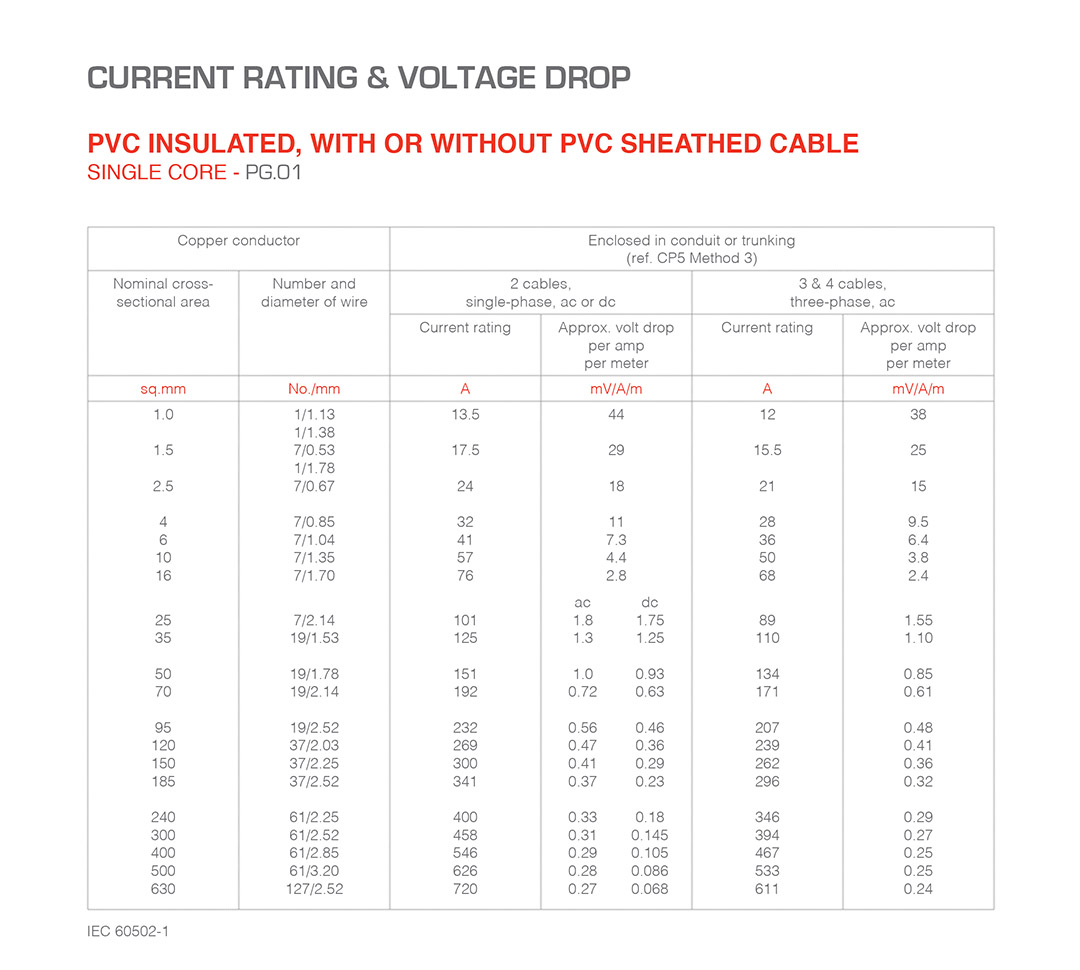

> WITH OR WITHOUT PVC SHEATHED CABLE SINGLE CORE – PG.01
> WITH OR WITHOUT PVC SHEATHED CABLE SINGLE CORE – PG.02

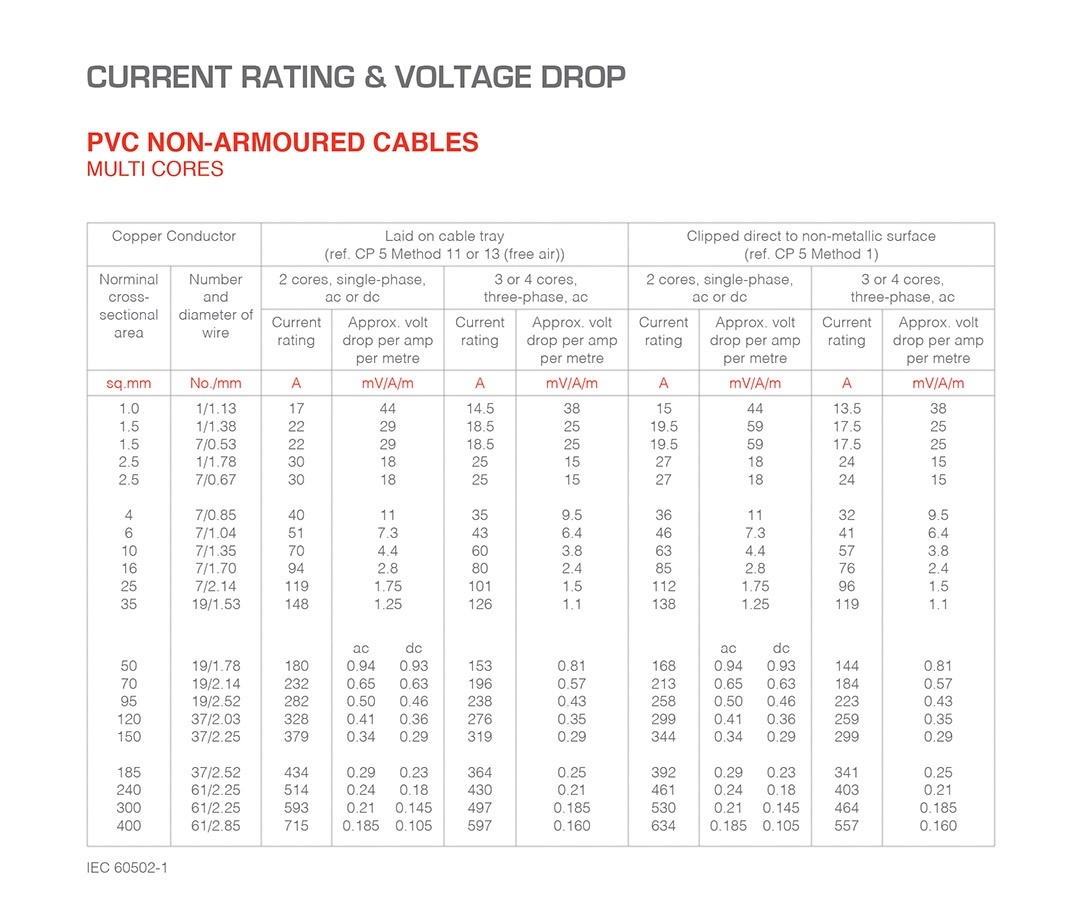

> NON-ARMOURED CABLES MULTI CORES
> ARMOURED CABLES. 600/1000V SINGLE CORE

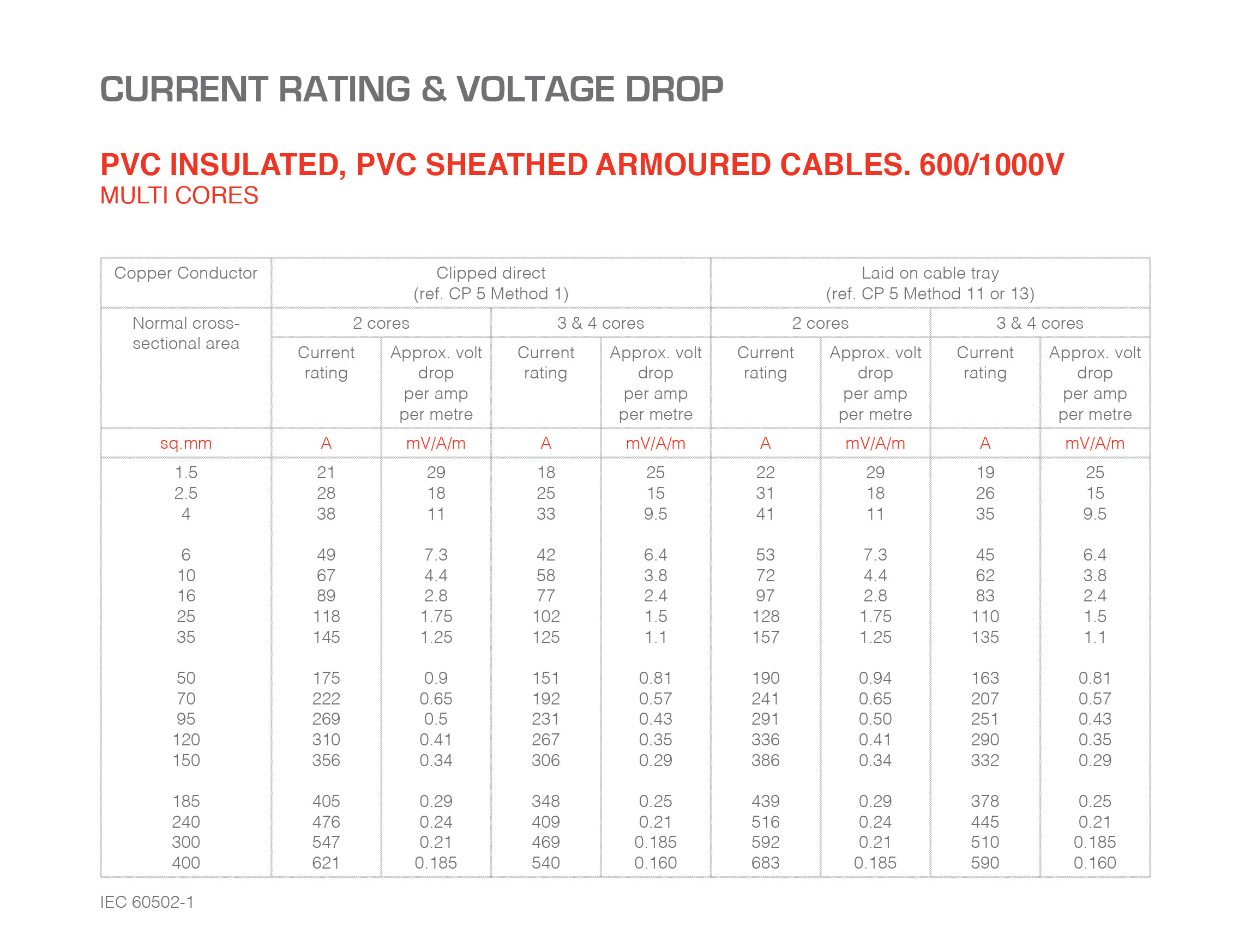

> ARMOURED CABLES. 600/1000V MULTI CORES

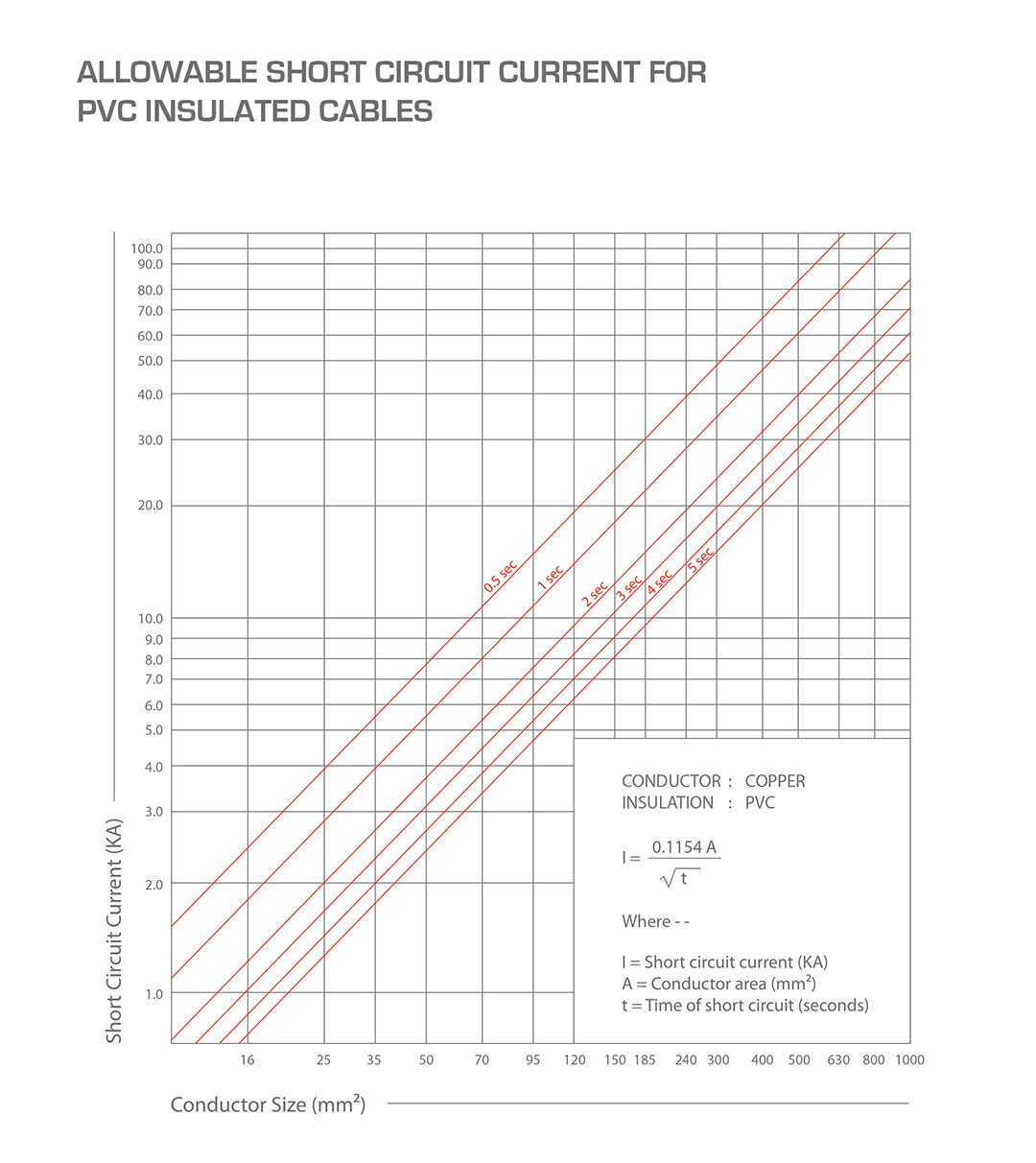

ALLOWABLE SHORT CIRCUIT CURRENT FOR PVC INSULATED CABLES

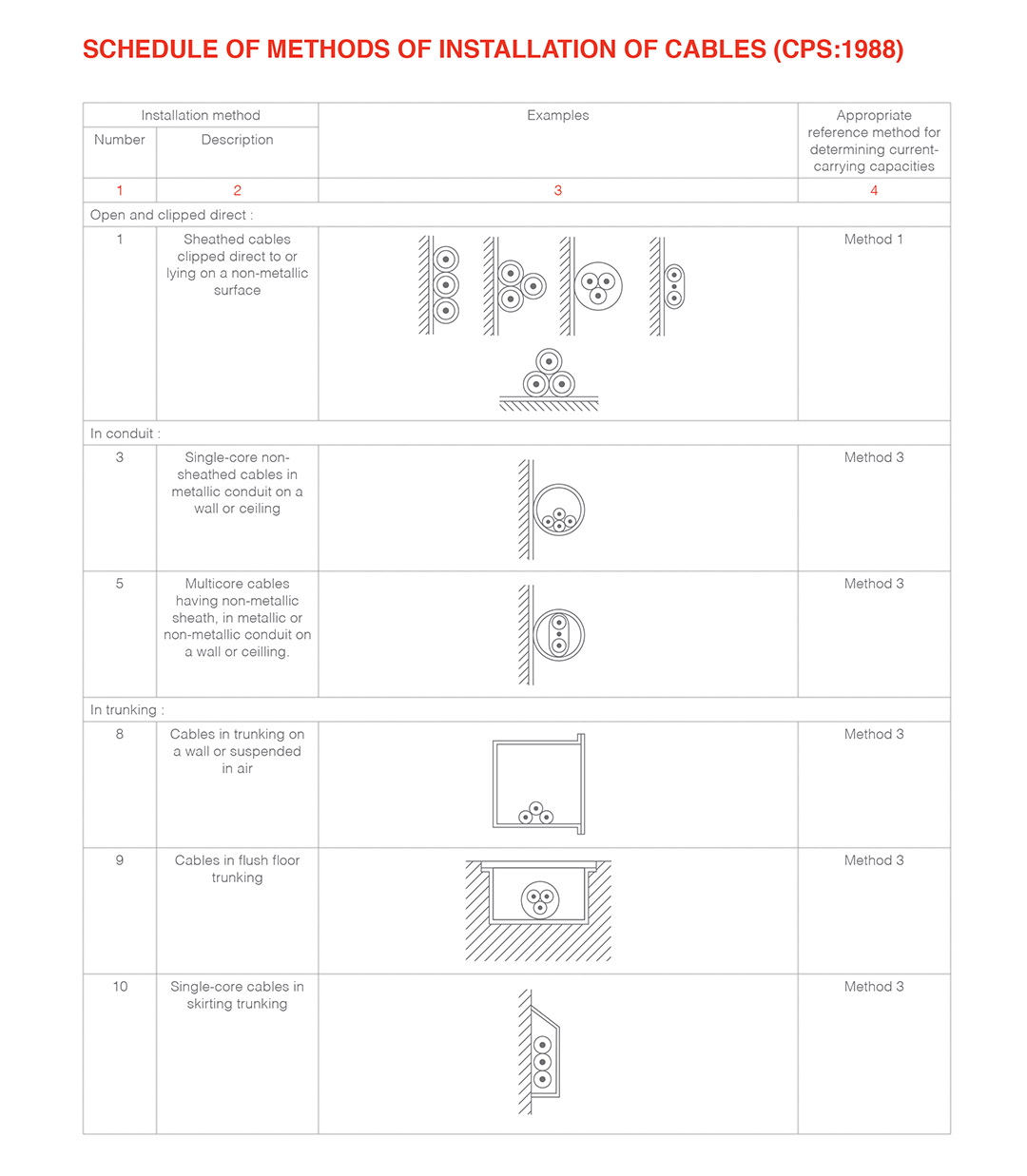

SCHEDULE OF METHODS OF INSTALLATION OF CABLES (CPS:1988) – 1
SCHEDULE OF METHODS OF INSTALLATION OF CABLES (CPS:1988) – 2

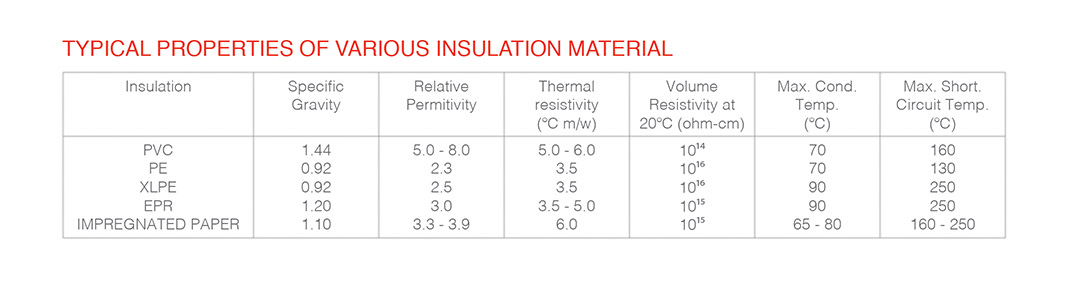

• TYPICAL PROPERTIES OF VARIOUS INSULATION MATERIAL

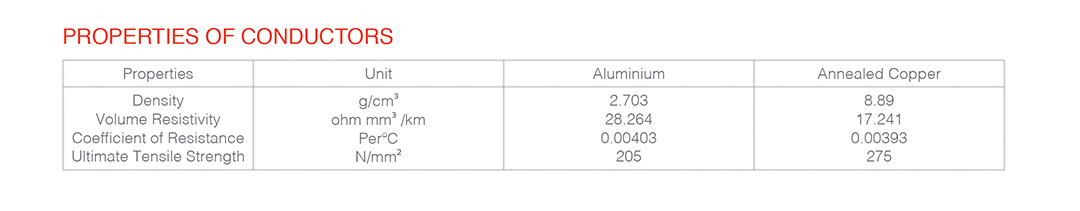

• PROPERTIES OF CONDUCTORS

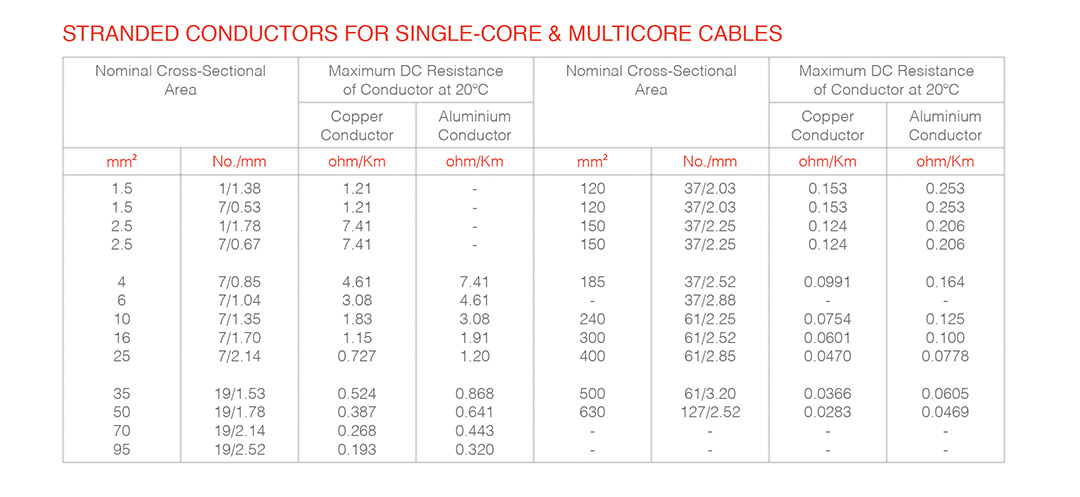

• STRANDED CONDUCTORS FOR SINGLE-CORE & MULTICORE CABLES

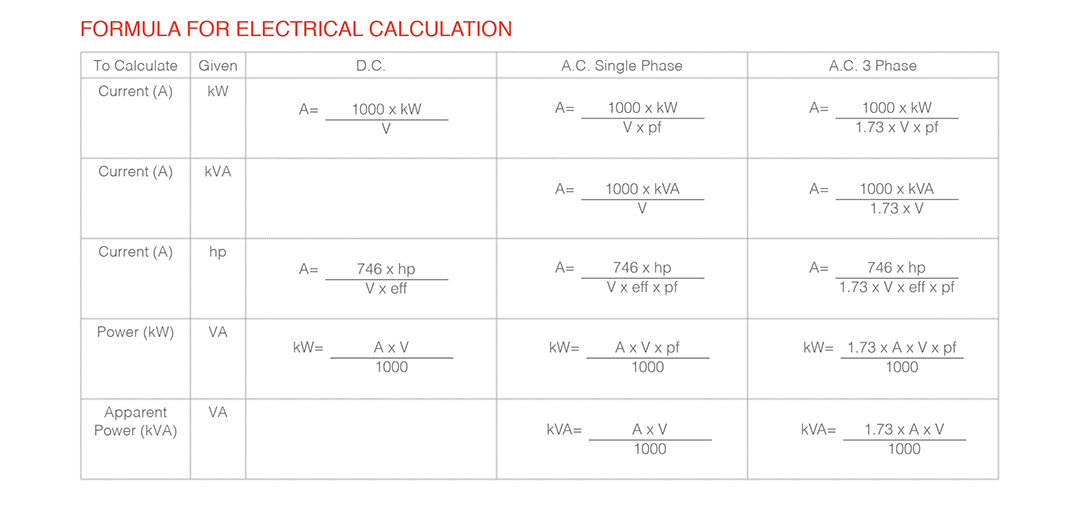

• FORMULA FOR ELECTRICAL CALCULATION
• UNITS CONVERSION FACTOR
