XLPE INSULATED, PVC SHEATHED CABLES

NON-ARMOURED – 1 Core

NON-ARMOURED – 1 Core
NON-ARMOURED – 2 Cores

NON-ARMOURED – 2 Cores
NON-ARMOURED – 3 Cores

NON-ARMOURED – 3 Cores
NON-ARMOURED – 4 Cores

NON-ARMOURED – 4 Cores
ARMOURED CABLES – 1 Core

ARMOURED CABLES – 1 Core
ARMOURED CABLES – 2 Cores

ARMOURED CABLES – 2 Cores
ARMOURED CABLES – 3 Cores

ARMOURED CABLES – 3 Cores
ARMOURED CABLES – 4 Cores

ARMOURED CABLES – 4 Cores

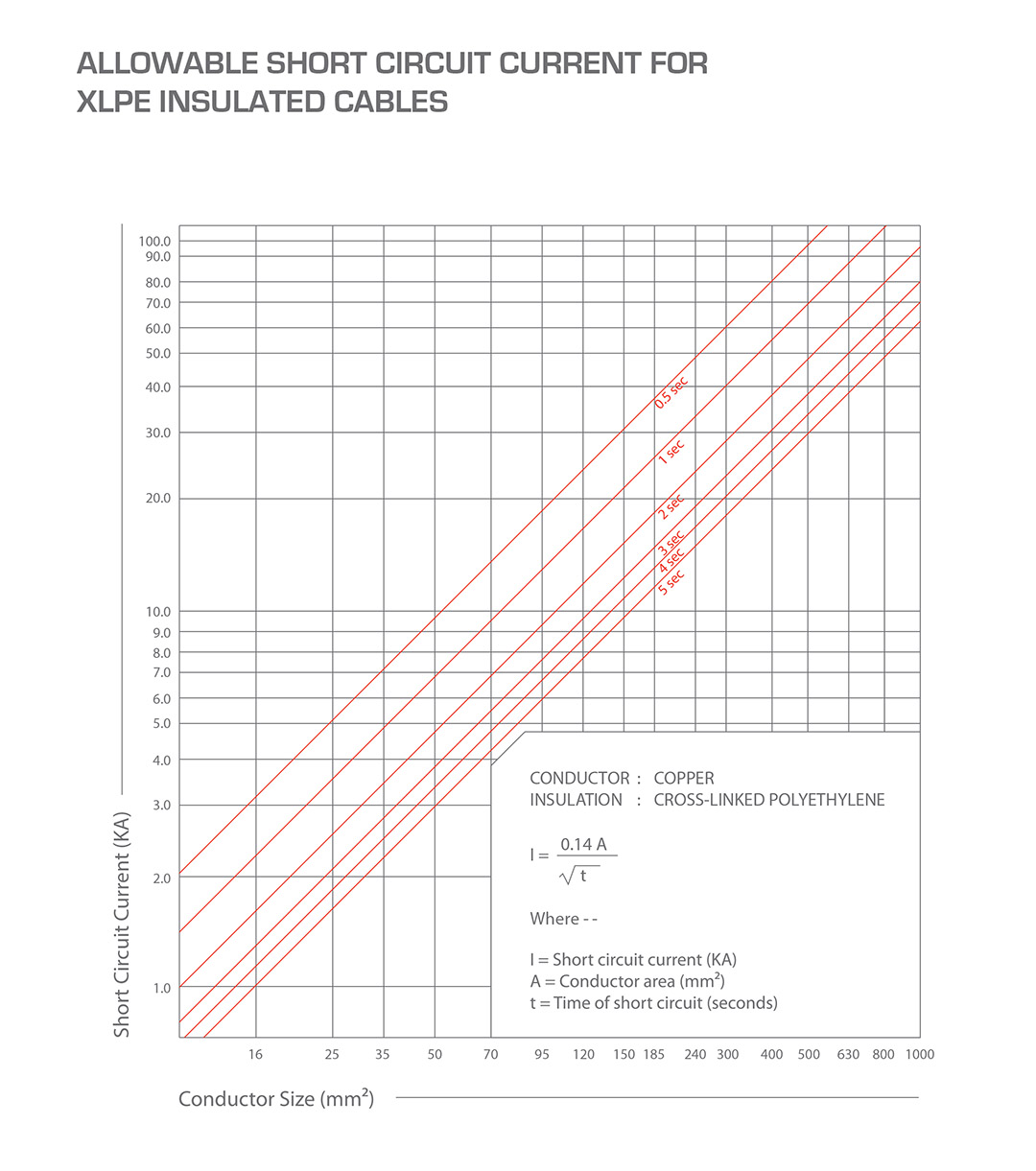

ALLOWABLE SHORT CIRCUIT CURRENT FOR XLPE INSULATED CABLES

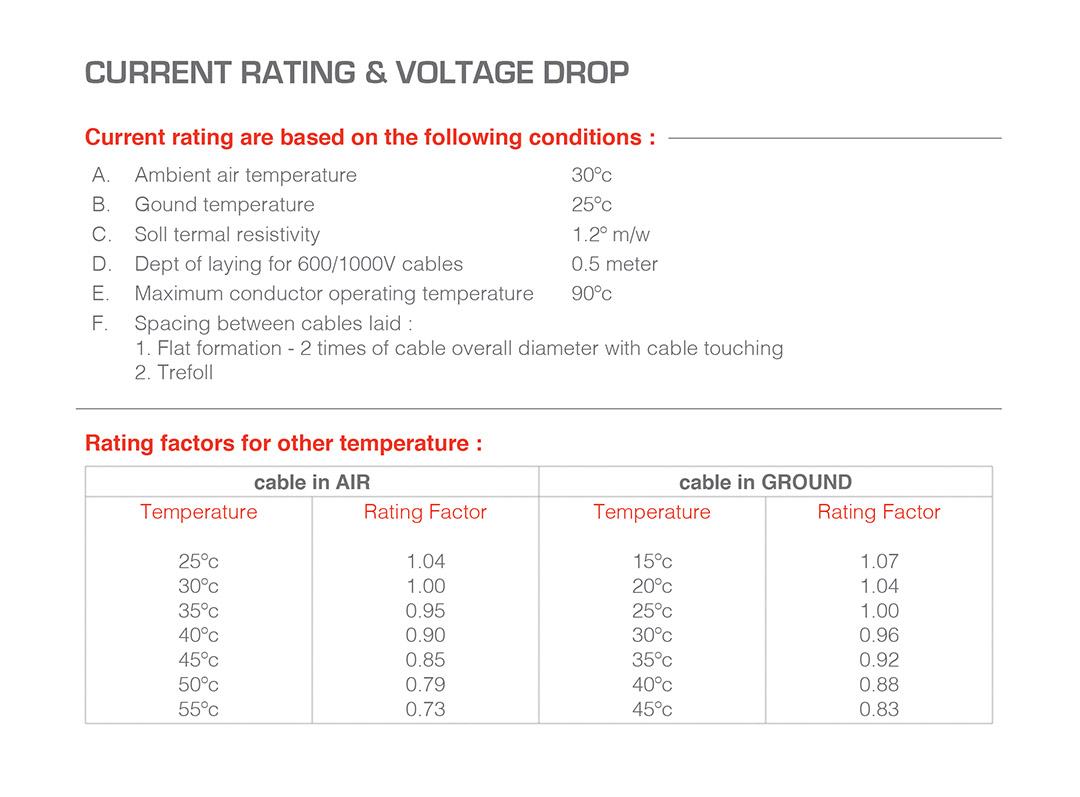

CURRENT RATING & VOLTAGE DROP

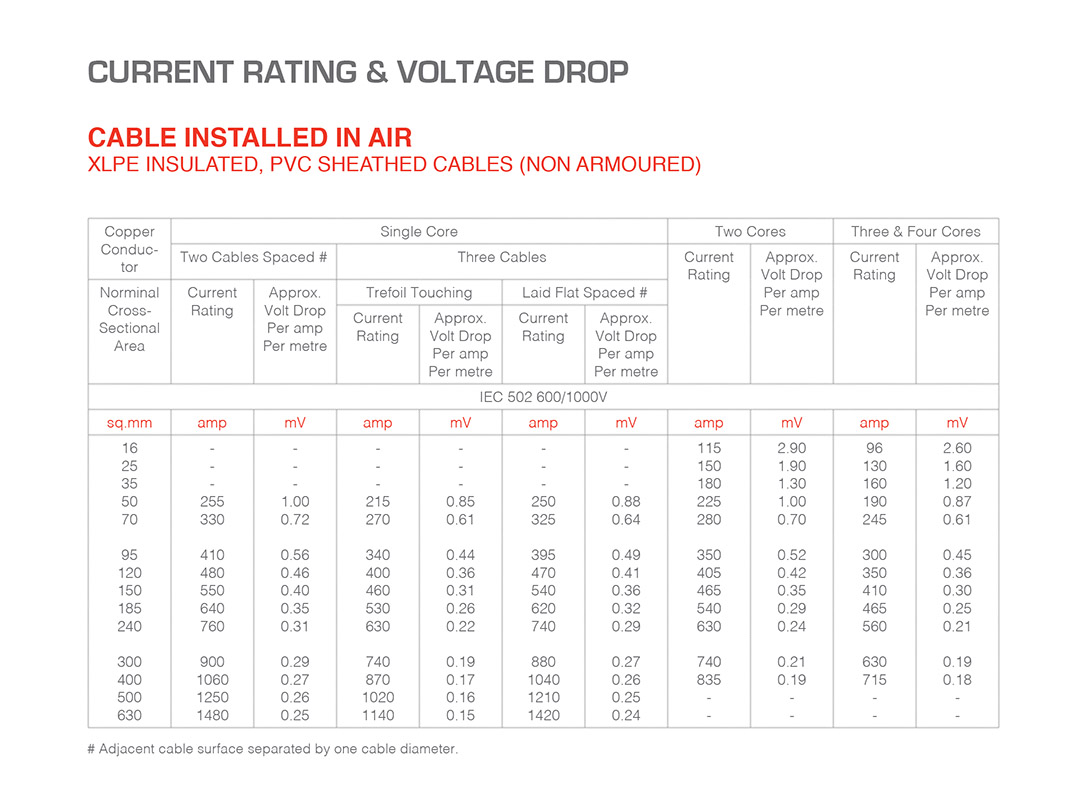

> CABLE INSTALLED IN AIR (NON-ARMOURED)

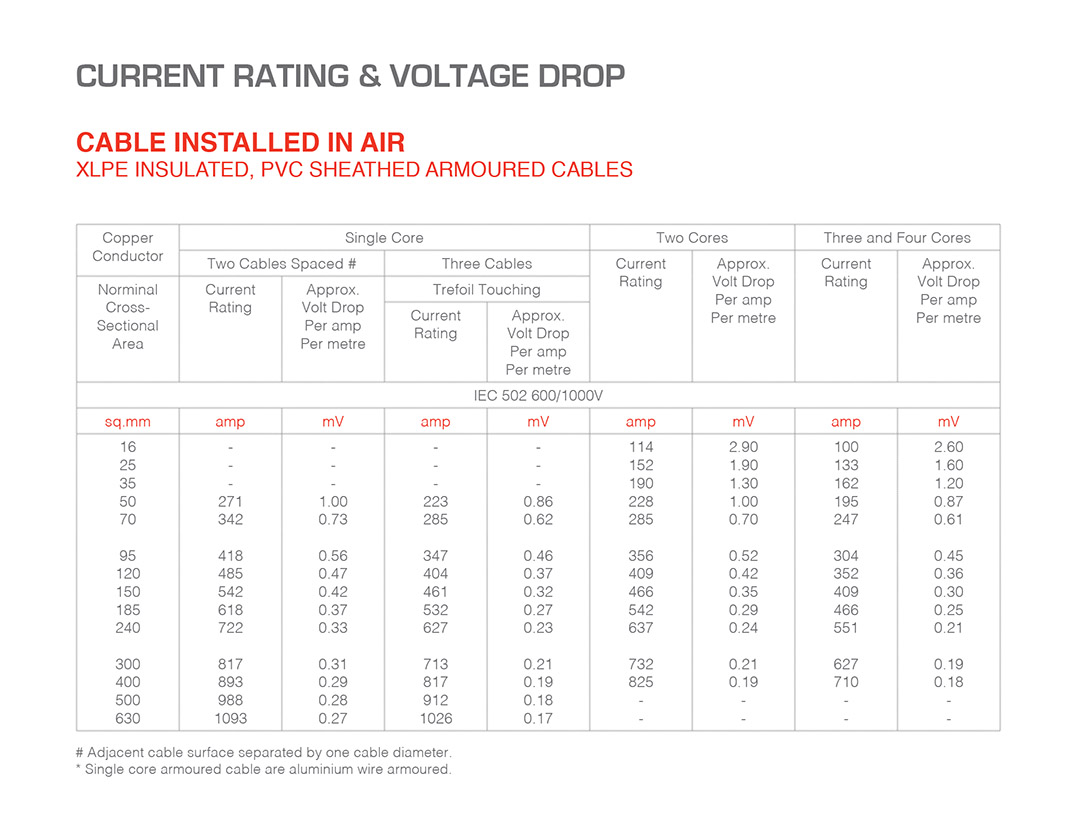

> CABLE INSTALLED IN AIR (ARMOURED CABLES)

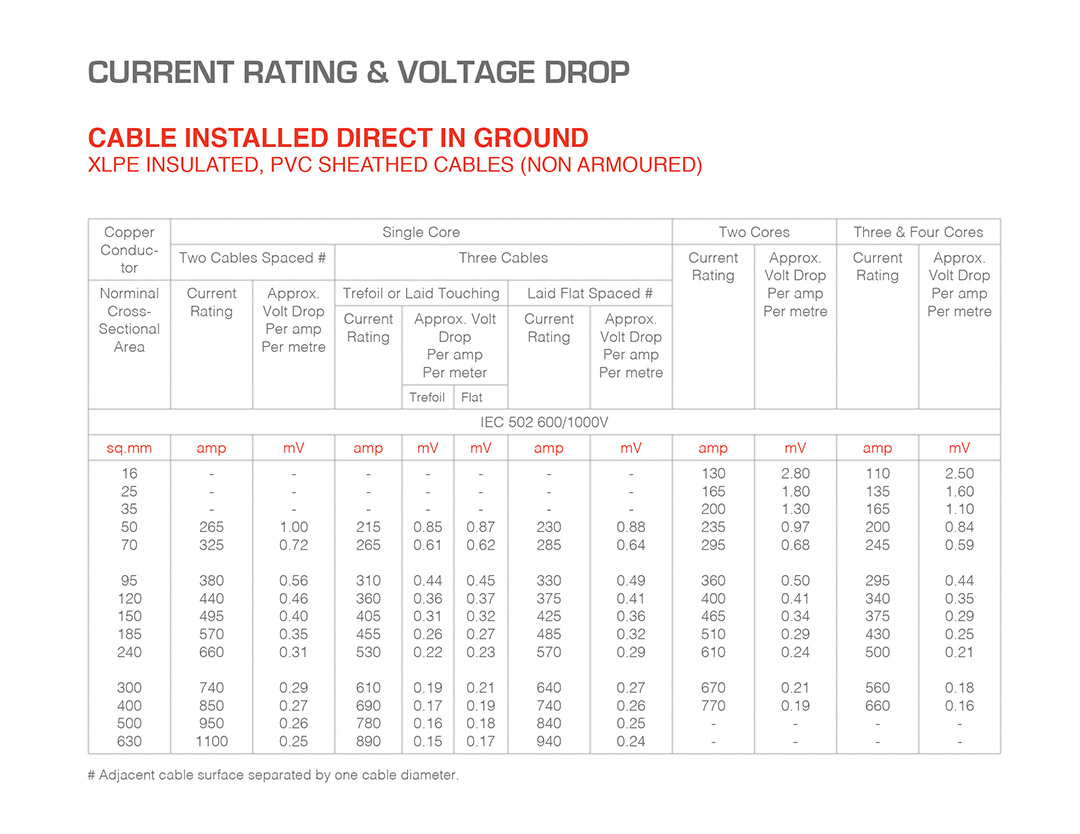

> CABLE INSTALLED DIRECT IN GROUND (NON ARMOURED)

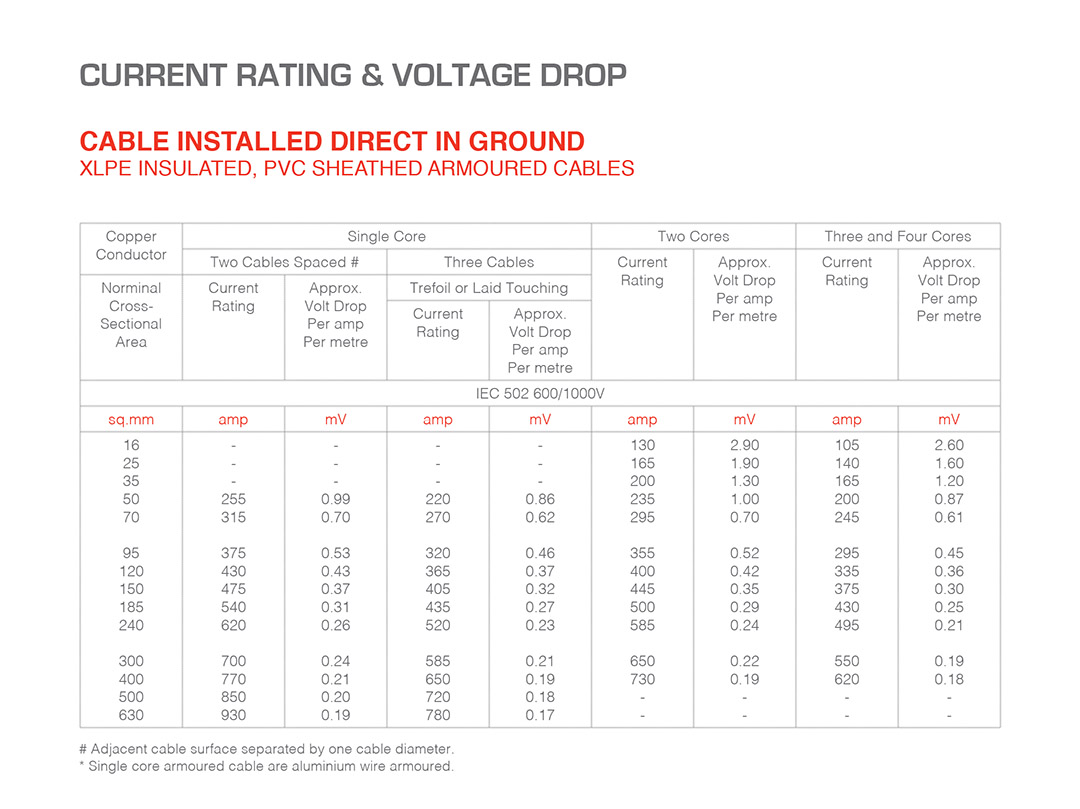

> CABLE INSTALLED DIRECT IN GROUND (ARMOURED CABLES)

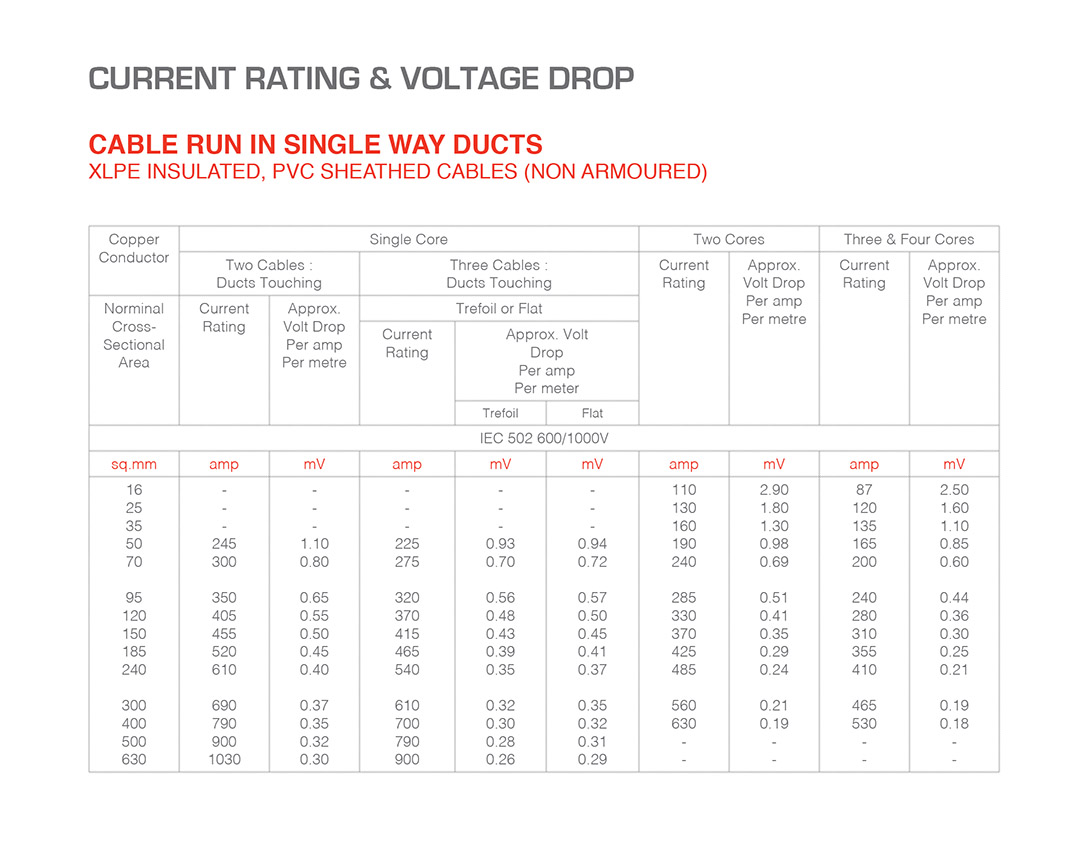

> CABLE RUN IN SINGLE WAY DUCTS (NON ARMOURED)

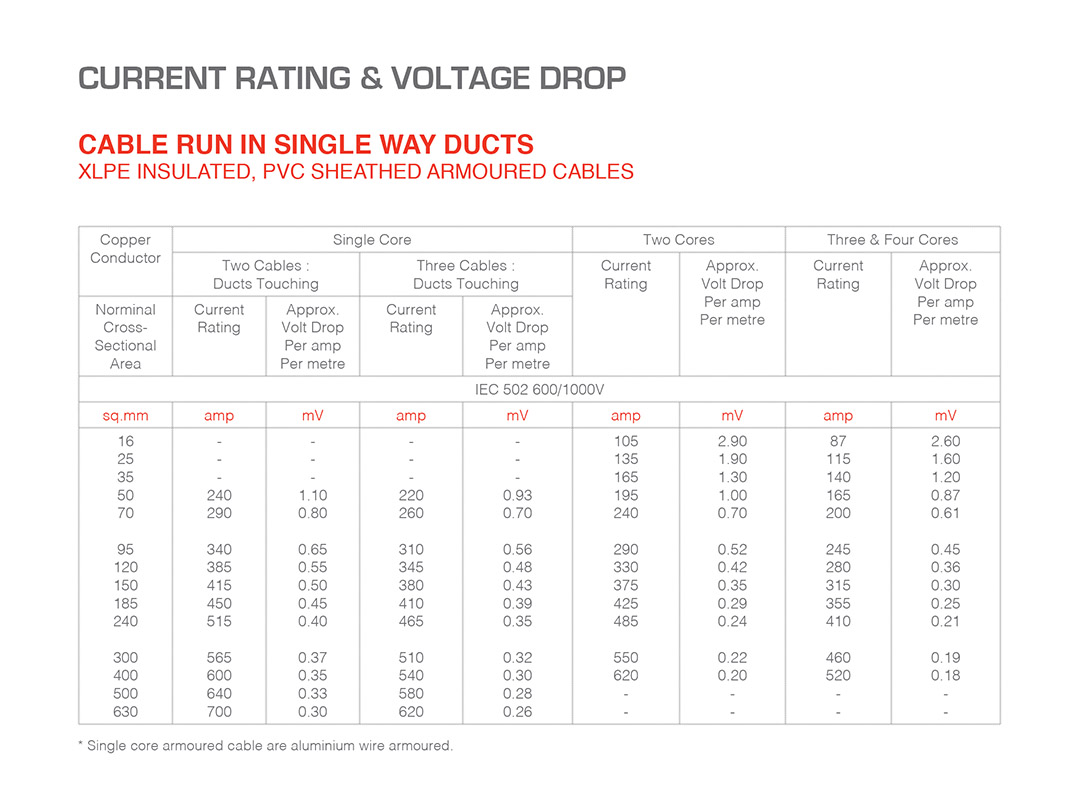

> CABLE RUN IN SINGLE WAY DUCTS (ARMOURED CABLES)

Go to PVC INSULATED CABLES

• TYPICAL PROPERTIES OF VARIOUS INSULATION MATERIAL
• PROPERTIES OF CONDUCTORS
• STRANDED CONDUCTORS FOR SINGLE-CORE & MULTICORE CABLES
• FORMULA FOR ELECTRICAL CALCULATION
• UNITS CONVERSION FACTOR

United MS Cable Mfg Sdn Bhd reserves the right to modify specification of any of the products at our discretion and without notice. We do not responsible to the suitability of any product for a particular use, or for any errors or omissions, unintentional or otherwise.
